5. STRUCTURAL DESIGN OF CONNECTIONS

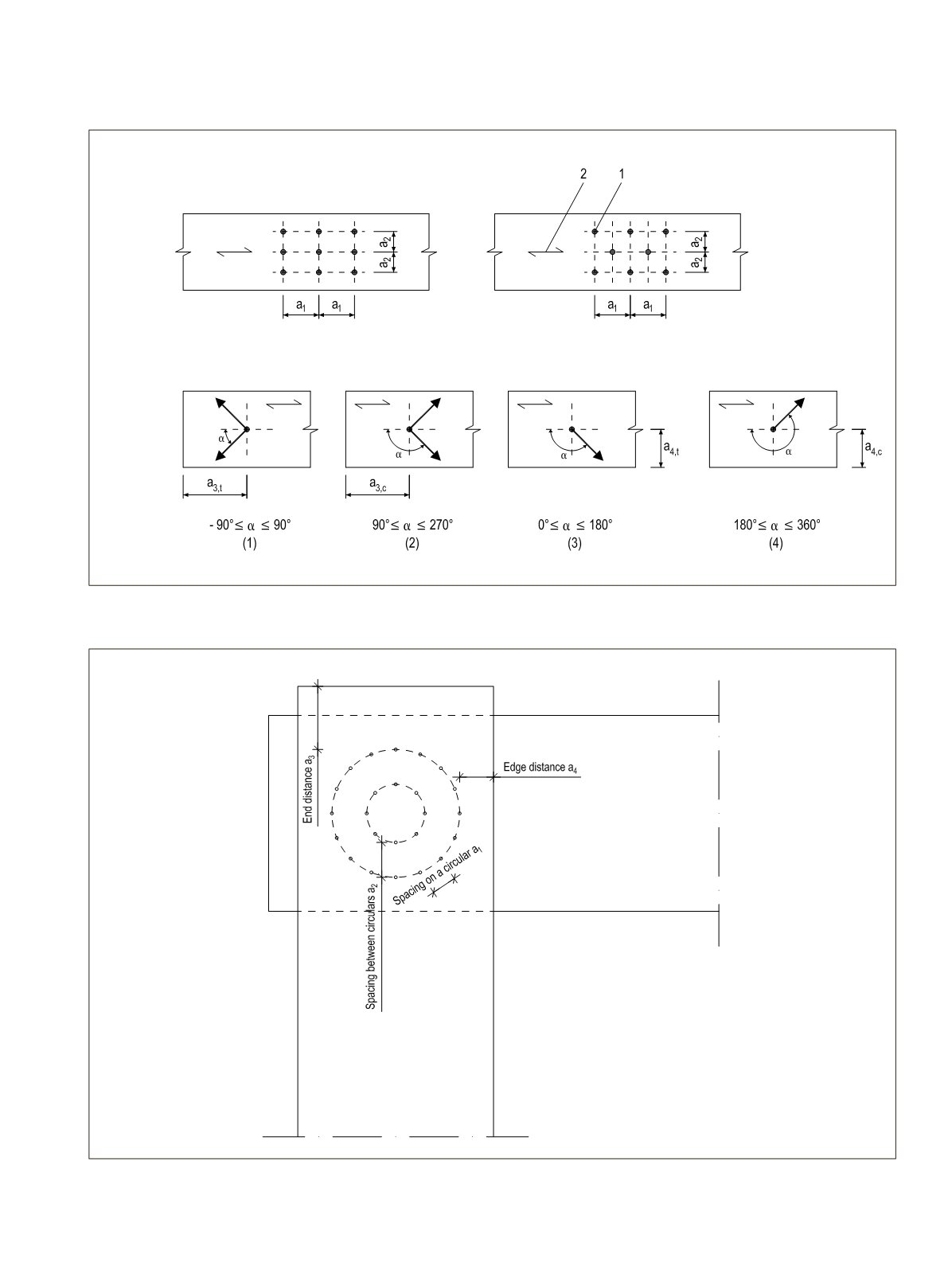

Figure 5.5.
Spacings and end and edge distances: (A) Spacing parallel to grain in a row and perpendicular to grain between rows; (B) Edge and
end distances; (1) Loaded end, (2) Unloaded end, (3) Loaded edge, (4) Unloaded edge; 1 Fastener, 2 Grain direction (EC5 figure 8.7).
Figure 5.6.
Moment-resisting multi-shear LVL-to-LVL flatwise connections with circular patterns of fasteners.
A
B
