2. LVL STRUCTURES IN FLOORS, WALLS, ROOFS AND IN SPECIAL APPLICATIONS

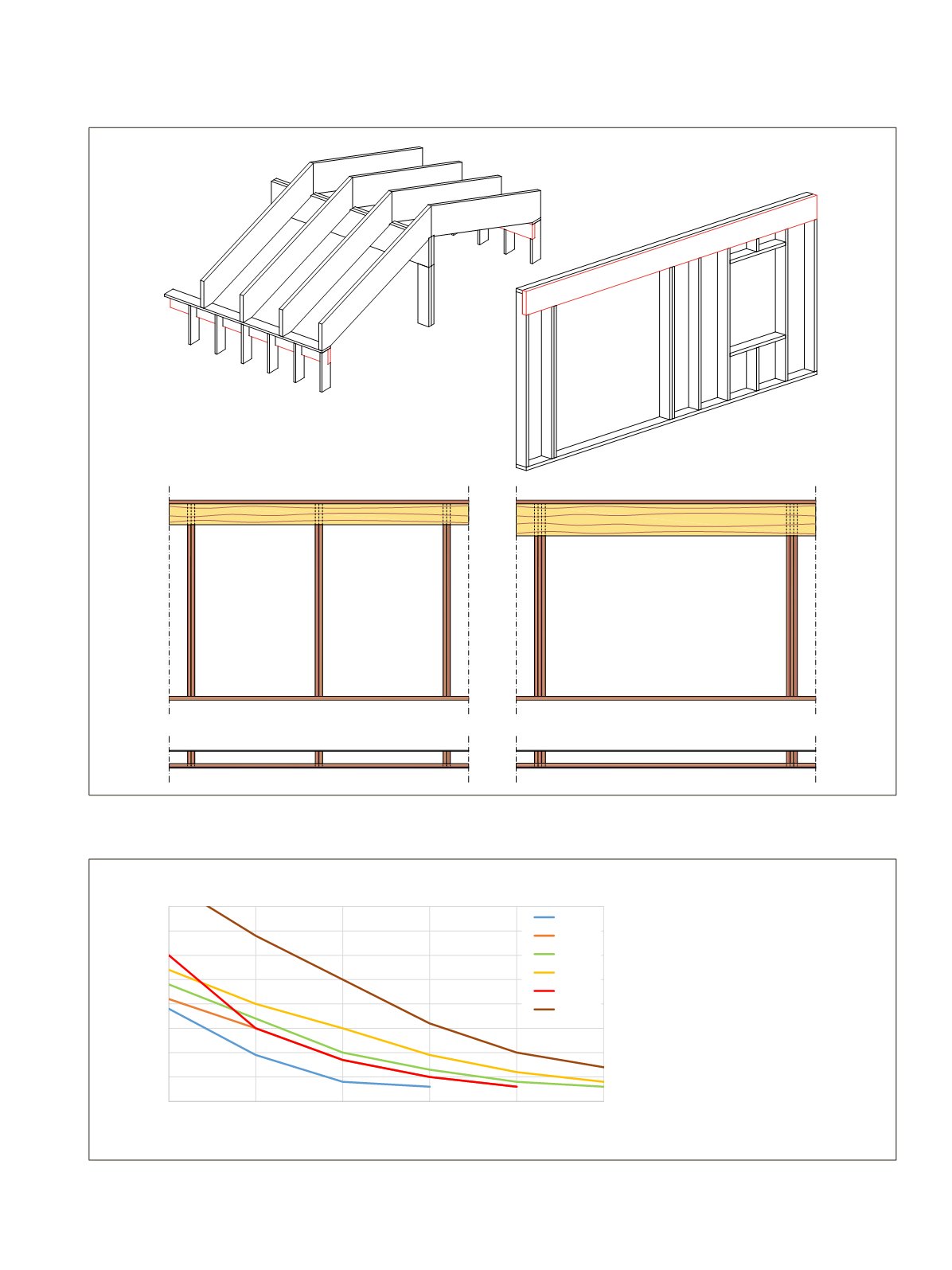

Figure 2.64.
LVL-P integrated rim beam for timber frame wall structures. The bracing and load-bearing beam fits the thickness of timber-frame
walls. Key benefit: More possibilities for opening positioning with fewer load-bearing columns.
Calculations according to
EN 1995-1-1:2004+A1:2008 and its
Finnish National Annex. Permanent
load is 25% of total characteristic load,
the remainder is snow load. Wind load
not accounted for. Service class 1 or 2;
consequences class CC2. The beam has
lateral torsional buckling supports on
the top surface at ≤ 600 mm spacing.
Support length to be calculated
separately. Net final deflection
w
net,fin
≤ L/300.
γ
M
= 1,2 Does not
replace project-specific structural
design.
Figure 2.65.
Capacities [kN/m] of single-span LVL 48 P integrated rim beams for predesign.
0
5
10
15
20
25
30
35
40
1,5
2,0
2,5
3,0
3,5
4,0
Characterastic load [kN/m]
Maximum span length [m]
LVL 48 P rim beams h = 200 - 300mm
45x200
45x240
45x260
45x300
75x200
75x300
