4. STRUCTURAL DESIGN OF LVL STRUCTURES

4.3 LVL DESIGN ACCORDING TO

EUROCODE 5

In EN 1995-1-1 (Eurocode 5) the structural design calculations

are made in the ultimate limit state (ULS) for bending moment,

shear, tension and compression resistance, stability, connec-

tions, and stress concentrations in notches, holes and tapered

beams. Serviceability limit state (SLS) design calculations are

made for deformations and floor vibrations. The following sub-

sections provide instructions on these design calculations with

remarks regarding LVL-specific properties. The equations in

this Section have individual numbers and when an equation is

in the same form in Eurocode 5, it is marked with EC5 and the

equation reference number there, e.g., (EC5 6.11).

4.3.1 Bending

The following expressions shall be satisfied:

σ_(m,y,d)/f_(m,y,d) +k_m

(4.4) (EC5 6.11)

k_m σ_(m,y,d)/f_(m,y,d) +σ_(

(4.5) (EC5 6.12)

where

σ

m,y,d

and

σ

m,z,d

are the design bending stresses about the

principal axes as shown in Figure 4.2;

f

m,y,d

and

f

m,z,d

are the corresponding design bending

strengths. In addition to kmod and γM, for

LVL in edgewise bending the design value

is dependent on the member height h. That

is taken into consideration by factor

k

h

which is defined as

k_h=(300/h)^s≤1,1

(4.6) (EC5 3.3)

where

h

is the member height in bending

s

is the size effect parameter. For LVL-P and LVL-C strength

classes it is 0,15, but manufacturer-defined values are

also possible

Note: Multiple-glued GLVL products are subject to manufac-

turer-specific rules for size effect in flatwise bending in flatwise

bending (reference size and size effect parameter s

flat,m

).

The value of the factor km should be taken as follows LVL:

for rectangular sections:

k

m

= 0,7

for other cross sections:

k

m

= 1,0

Note: The factor k

m

makes allowance for re-distribution of

stresses and the effect of inhomogeneities of the material in the

cross-section.

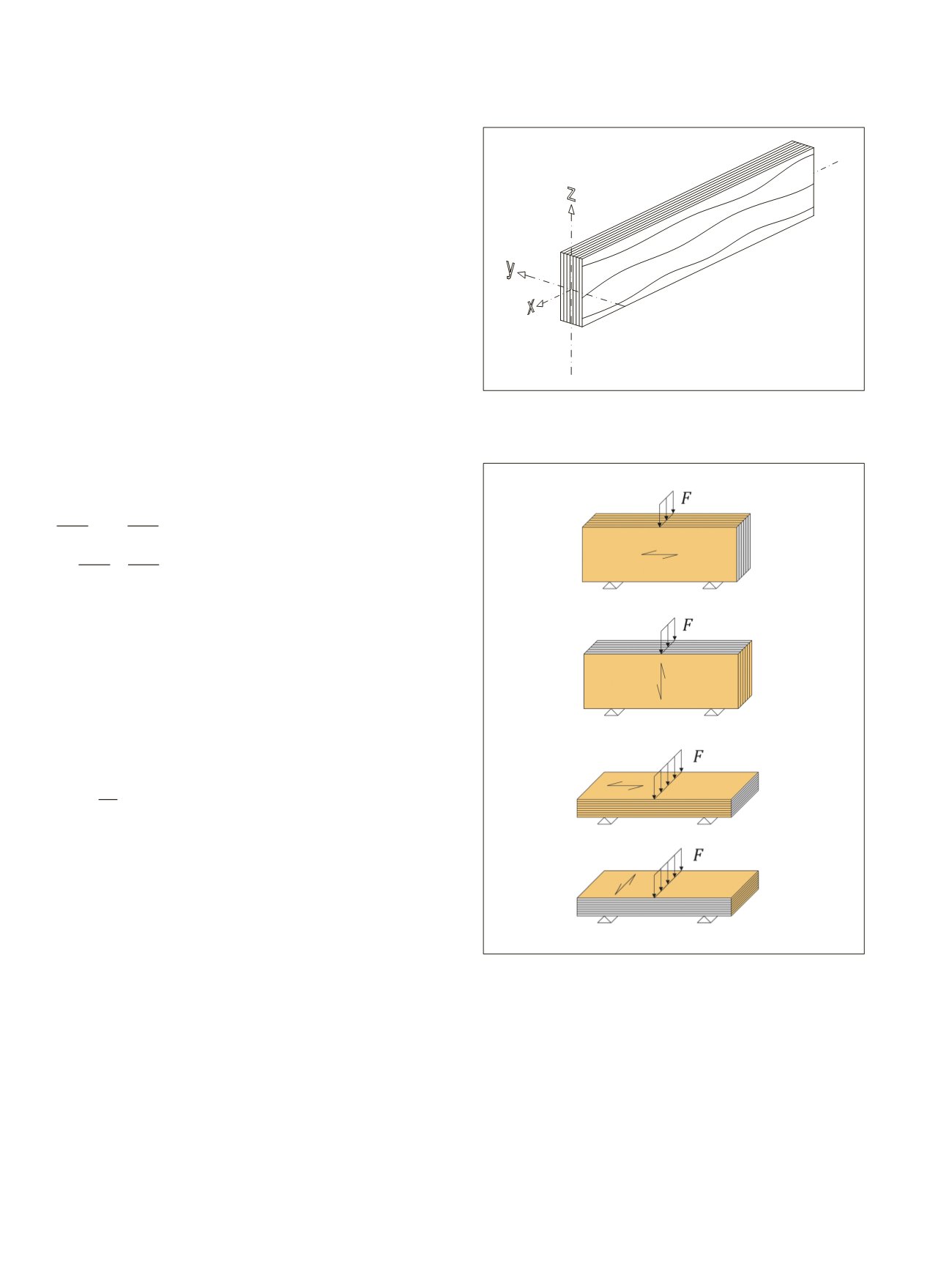

Figure 4.3.

Member axes of LVL. X is in the grain direction of the

surface veneers, Z is in the edgewise direction and Y in the flatwise

direction.

Figure 4.4.

Edgewise and flatwise bending orientations of LVL.

Due to the cross veneers, LVL-C panels have a bending strength

flatwise perpendicular to the grain

f

m,90,flat,k

that is about 20% of

the value along the grain. In the edgewise direction,

f

m,90,edge,k

,

the strength is not defined in the DoPs of the product, but it

may be calculated using the instructions provided with man-

ufacturer’s technical information. Bending strength

f

m,90,flat,k

and

f

m,90,edge,k

of LVL-P are negligible and cannot be utilized

in structural design.

m,y,d m,y,d

+

m

m,z,d m,z,d

≤ 1

(4.4) (EC5 6.11)

m

m,y,d m,y,d

+

m,z,d m,z,d

≤ 1

(4.5) (EC5 6.12)

h

= �

300 ℎ

� ≤ 1,1

(4.6) (EC5 3.3)

m

m,y,d m,y,d

+

m,z,d m,z,d

≤ 1

(4.5) (EC5 6.12)

h

= �

300 ℎ

� ≤ 1,1

(4.6) (EC5 3.3)
