Effective cross section size after 30 minutes fire exposure on all sides:
d_ef=β_n∙t+k_0∙d_0=0,70 mm/min∙30min+1,0∙7mm=28mm
Size of the effective cross section:
Width
b
: 133 mm - 2∙28 mm = 77 mm
Height
h
: 400 mm - 2∙28 mm = 344 mm
Beam properties of the effective cross section after 30min fire exposure:
Bending strength edgewise
f
m,0,edge,k
= 44 N/mm
2
Shear strength edgewise
f
v,0,edge,k
= 4,2 N/mm
2
Compression perpendicular to grain edgewise
f
c,90,edge,k
= 6 N/mm
2
Modulus of elasticity
E
0,k
= 11 600 N/mm
2
Modulus of rigidity
G
0,edge,mean
= 400 N/mm
2
Area of cross section
A
=
b∙h
= 26488 mm
2
Section modulus
W
y
=
b∙h
2
/6
= 1,52∙10
6
mm
3
Moment of inertia
I
y
=
b∙h
3
/12
= 2,61∙10
7
mm
4
Moment of inertia
I
z
=
h∙b
3
/12
= 1,31∙10
7
mm
4
Torsion moment of inertia
I
tor
= 0,3∙
h∙b
3
= 4,71∙10
7
mm
4
Modification factor
k
mod,fi
= 1,0
Modification factor
k
fi
= 1,1
Material safety factor
γ
M,fi
(default value in EC5)
= 1,0
Size effect factor
k
h
= (300/344)
0,15
= 0,98
9. CALCULATION EXAMPLES OF LVL STRUCTURES
c,90,d
=
c,90,d ef
=
c,90,d
∙ ( + 30 mm) =
15,2kN
150 mm ∙ (51 mm + 30 mm) = 1,3N/mm
2
k
c,90
is
1,4 for LVL-P flatwise and
f
c,90,k
is 2,2 N/mm
2
.
c,90
∙
c,90,flat,d
= 1,4 ∙ 1,1 1,2 ∙ 2,2 Nmm
2
= 2,8 N/mm
2
>
c,90,d
→ OK
ef
=
n
∙ +
0
∙
0
= 0,70 mmmin ∙ 30min + 1,0 ∙ 7mm = 28mm

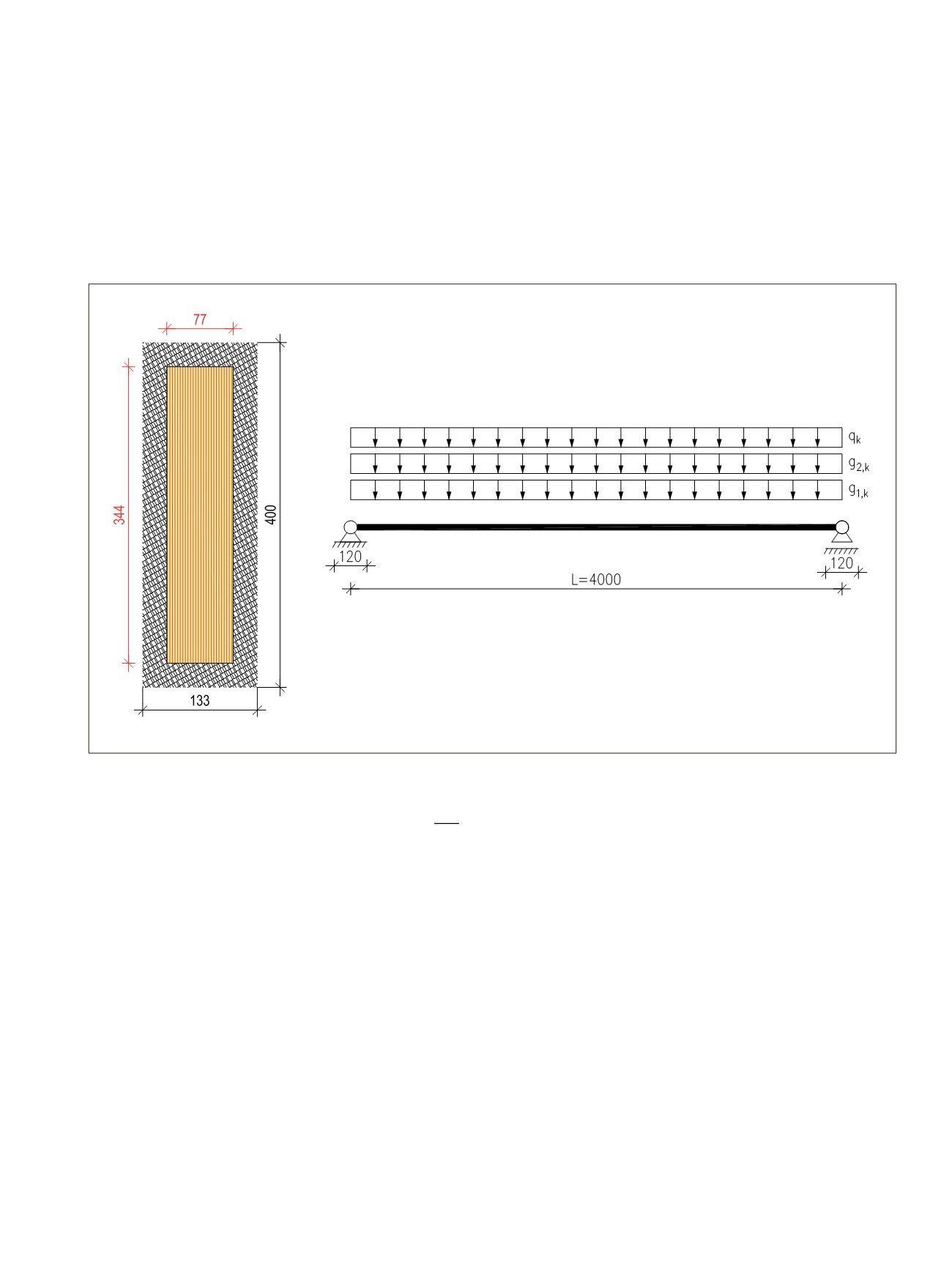

9.11 MAIN BEAMOF ROOF STRUCTURE IN 30MIN FIRE EXPOSURE
Single-span main beam of a flat roof structure is GLVL 48 P beam 133x400 mm. Span length is L = 4000 mm,
width of the loading area 8000 mm and roof purlins are on the top of the beam. Support length is 100 mm.
Snow load sk is 2,5 kN/m
2
, own weight of the roof structure is 1,0 kN/m
2
and own weigh of the beam is
0,2 kN/m. The structure fulfils the ULS and SLS requirements in normal temperature where
w
net,fi
≤ L/300 has
been the most critical requirement. The re re istance R30 of the bea needs to be verified for fire exposure
on all sides of the beam.
